Notes on the Minolta SR-1 (Model B)

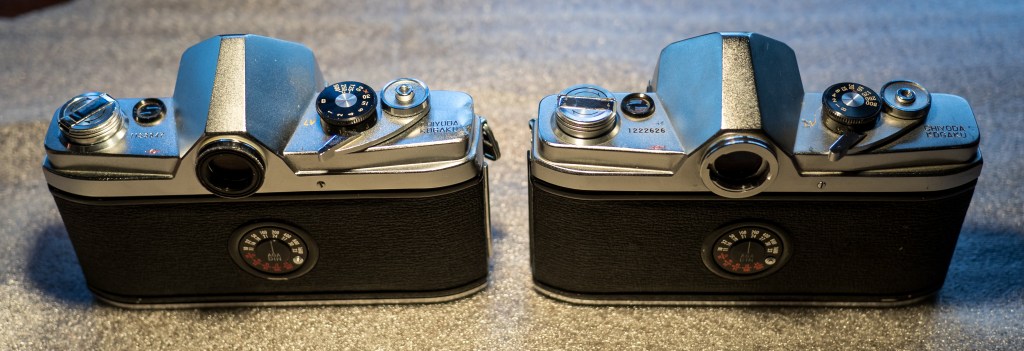

Minolta SR-1 model A (left) and B (right) from the back

A few months ago I published an epic about the first version of the Minolta SR-1 camera: Notes on the Minolta SR-1 (Model A). Released in 1959, that was the first in a series of 35mm film SLRs that Minolta branded the SR-1, a line that continued until 1971. This post will be about the model B: pointing out some differences from the model A within the camera, then some remarks about replacing the mirror and the leather cover.

The revisions have unofficial names that various sources seem to accept:

  • Model A (1959): a cut-down version of the SR-2 from 1958, with the fastest shutter speed (1/1000 sec) removed
  • Model B (1960): made the speed selection dial simpler to use: with a model A you have to lift the dial to turn it, but with a model B you can just flick it around
  • Model C (1961): introduced a fully-automatic aperture, so that the aperture returned to fully-open (ready for focusing) immediately after taking the shot, rather than only when the film was wound on
  • Model D (1962): added a mount for a clip-on light meter on the front of the camera
  • Model E (1963): moved the film counter from left to right of the top of the body (as seen from behind), restyled the advance lever, and introduced a larger mirror
  • Model V (1965): redesigned the body to a squarer shape, and made various minor functional changes. Unlike these other model letters, the Model V designation was official
  • SR-1s (1967): reintroduced the 1/1000 sec fastest shutter speed

Although these look like incremental updates, it turns out that quite a bit changed within the camera from one model to the next.

I think the logic is: The SR-1 was always the label for Minolta’s “entry-level” 35mm SLR, and it was always a cut-down version of some “premium” model. But as they kept releasing new premium models, they also kept updating what the SR-1 was a cut-down version of, so that they could use the same manufacturing process for both cameras.

  • Model A (1959): cut-down version of the SR-2 (1958)
  • Model B (1960): cut-down version of the SR-3 (1960), which added a light meter attachment on the front (not yet included in the SR-1)
  • Model C (1961): cut-down version of the SR-3 (1961), which was revised that year to introduce the fully-automatic aperture (the SR-1 has that feature but still omits the light meter attachment)
  • Model D (1962): inherits the light meter attachment from the SR-3, effectively replacing that model; the SR-3 is dropped, and the premium model becomes the new SR-7 with built-in light meter
  • Model E (1963): cut-down version of the SR-7 (1962), omitting the built-in light meter and using the attachment instead
  • Model V (1965): cut-down version of the SR-7 Model V (1965), omitting the built-in light meter and using the attachment instead
  • SR-1s (1967): cut-down version of the SR-7 Model V; finally has the same feature set as 1961’s high-end SR-3

So the changes on the inside reflected Minolta’s current camera design even when they made little difference to the external working of the camera.

Anyway, here’s my survey. The same disclaimer as before applies: I don’t know what I’m doing, just learning as I go, so please don’t follow anything I say and ruin your own camera. Once again, I bought two examples of this camera (both non-working this time) and dug in.

Survey of features

Refer to my earlier article for a description of the SR-1 model A. I can only see three external changes in the model B.

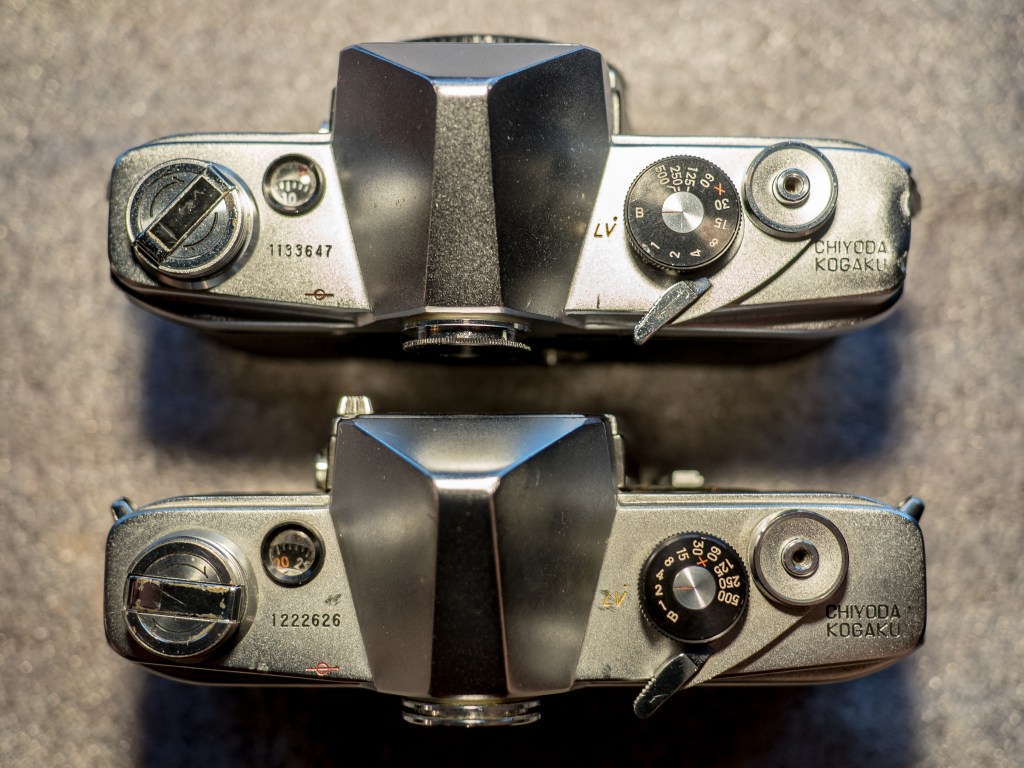

Model A (above) and B (below)

The most significant one is the speed selection dial, which is slightly smaller, turns without being lifted first (and does so with a very satisfying click), and lists the speeds in the opposite order, which I believe means switching from the same order as used by Nikon to that of Pentax and Canon.

Apart from that, the viewfinder now has a bayonet attachment fitting on it, and has changed from black to silver; and the tripod mount on the base of the camera is a little thicker and stronger-looking. Oh, and one of the screws on the bottom has moved a few millimetres.

There is one other change that’s only visible when the camera doesn’t have a lens attached: the aperture lever within the lens mount now has a curved cutout and travels along a circular section rather than in a straight line.

The camera has the same dimensions as its predecessor and is about 10g lighter, a negligible difference.

What’s under the top cover

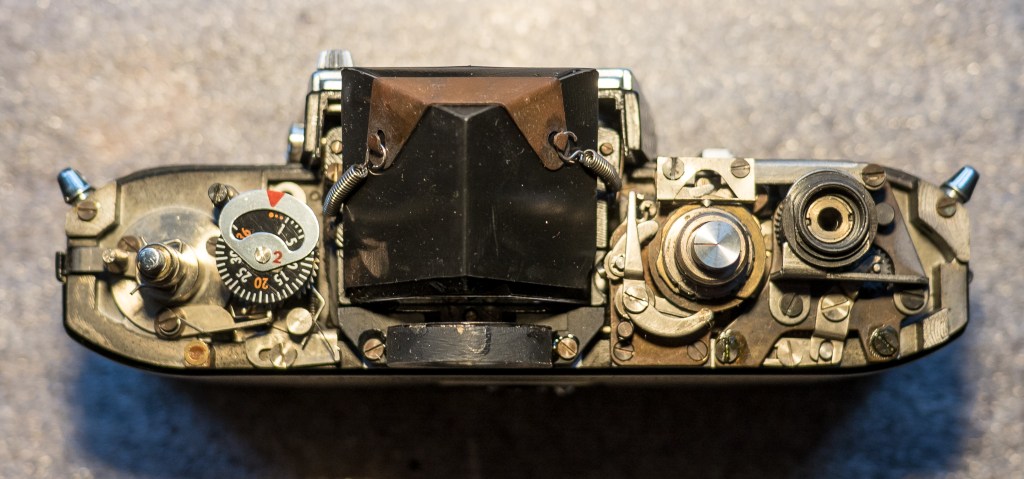

So the outside is almost unchanged, with only a few near-cosmetic updates. On the inside, the first surprise comes when the top cover is lifted:

Light meter attachment block, on the inside of the camera only

The attachment block for the external light meter, a feature that wouldn’t appear in the SR-1 until two years later, is already there! It’s on the left, beneath the SR-1 wording. It even has a corner shaved off so that the original SR-1 cover still fits over it.

The rest of the top is more familiar. The rear cover release, rewind knob, and exposure counter on the left are all unchanged. The winding gear and base plate on the right are essentially the same. Sadly the shutter button plate, the bit that actually gets pressed down by the shutter button and that was so convenient to be able to access when testing, has gone into hiding behind the light meter mount.

(I haven’t dug in under the winding base plate, but I suspect they may have removed the cutout and pin in one of the gears, which prevented double exposures by holding up the shutter button until winding is complete, since there is now a mechanism for this in the base of the camera.)

The speed dial of course has been redesigned, but it uses the same arrangement of levers, and the slow-speed gear (both the driving axes and the gear itself, in the bottom of the camera) is the same.

There are a couple of nice improvements around the viewfinder and prism. The first is that the prism no longer has a foam seal glued directly onto its silvering, so it doesn’t suffer from the corrosion that afflicted both of my model A cameras.

The second is the addition of three height-and-level adjustment screws for the focusing screen beneath the prism. One of these can be seen in the picture below, just in front of the viewfinder eyepiece mount. (The others are at left and right of the front edge of the box.)

These screws allow correction of any focus mismatch between the viewfinder and film plane, by slightly raising or lowering the viewfinder focusing screen so that the distance from there, via the mirror, to the rear of the lens matches that from the film plane.

Although this seems nice to have, an awkward corollary is that both of my model B cameras arrived with the viewfinder focus slightly out (when checked using a ground glass placed in the film plane), whereas the model A cameras were both spot on. However, it is extremely handy if you ever need to replace the mirror, since a replacement might not be of identical thickness.

What’s under the bottom cover

This is where it gets peculiar. The only major user-visible change was the design of the speed dial, and the mechanism for that is on the top of the camera, so we’ve seen it already. What can have changed down here?

SR-1 model B (above) and A (below)

Almost everything! The model A (the one at the bottom, with SR 2 stamped on its base plate) is all linear motions, sliders and fairly simple levers driven from a single big rotary wheel on the left. The model B (above, with SR C on its base plate) is all exotic custom pivoted forms; everything rotates instead of sliding. Correspondingly, there is far more use made of angular wire springs rather than wound linear ones. The shutter springs and their adjusters are unchanged, and so is the motor drive attachment on the right (which is useless, as no motor drive was ever released) but I think every other part is different.

This really boggled my mind when I saw it. In software development terms, I had expected this camera to be a “consolidation release” of bugfixes and maintenance improvements. Instead it’s been rewritten in Javascript.

There are some peculiar decisions here, as well. To use another software term, there are several violations of the principle of separation of concerns:

  • See that screw beneath the bottom of the tripod mount, the one with a wire spring wrapped around it? Well, the only thing keeping the spring wrapped around it is… the tripod mount itself. Remove the tripod mount and the spring just pops off. If you remove the tripod mount for access to something else and then fire the shutter, the spring flies across the room. It’s an important spring as well, as it drives the aperture lever.
  • See the flat copper spring attached to the base plate under the top of the tripod mount? That latches the aperture open. The only thing holding it on to the base of the camera is one of the screws designed to attach the slow-speed gear, on the other side of the base, and the receiving thread for that screw is in the slow-speed gear block. Remove the slow-speed gear, for cleaning say, and you no longer have any way to hold this spring in place and can no longer latch the aperture open. And if you try to fire the shutter, the other spring flies across the room again, because you also had to remove the tripod mount to get at the slow-speed gear fixing screws.

Surely these should not have passed code review.

The angled wire springs can sometimes end up in the wrong place, as well. An example is just about visible in the picture above: left of the tripod mount, the end of a small wire spring pokes up next to the shutter trip lever. That spring is erroneously pulling the shutter trip lever downwards (in the plane of this picture), when it’s supposed to be sprung upwards. With the spring in this position the shutter doesn’t wait for the mirror to open before it fires, so your photo gets cut off by the mirror. The fix is to poke the spring back under the lever, but how did it get here in the first place, and could it happen again?

The camera that had that problem also had a mis-adjustment of its new double-exposure prevention mechanism. This is a little combination of levers and plates over on the top left of the picture above, next to where the shutter axis pokes out of the bottom plate. A sprung plate fits into a notch in the shutter axis; the winding action pushes it aside, so the shutter can be pressed, and when the shutter fires it springs back again. The mechanism has an adjustable eccentric, and if its adjustment screw is wrongly set, it doesn’t push aside far enough, preventing the shutter from being pressed at all. (When I bought this camera, it was described as not working because of a stuck shutter button.)

So even though the overall design is more elegant, these changes don’t seem to be all good. A couple of outcomes are more promising: the winding lever is a bit smoother to turn because it doesn’t have to push these long-travel linear sprung sliders, and the flash sync contact mechanism looks simpler than that in the model A, although I haven’t so much as tested this feature on any of these cameras.

If I had to guess why these changes were made (and I do have to guess: I have no idea) I’d say it’s because Minolta were looking ahead to the following year’s revision of the SR-3 and the corresponding SR-1 model C, with their fully-automatic aperture, a mechanism that presumably could never be driven from the model A’s linear sliders. But I don’t own a model C.

Replacing a mirror

One of these cameras arrived with a very tarnished mirror:

It looks particularly bad in this photo because I’m focusing on the mirror surface, which of course is not in focus when you actually use the viewfinder. In practice the mirror was still just about usable, if cloudy.

On the off-chance that the silvering was just marked, or at least that some of the marks were just marks and not actual damage, I tried a series of increasingly aggressive cleaning solutions: water, alcohol, acetone, silver cleaner. Surprisingly, none of them made it any worse, but none of them helped either. I decided to replace the mirror.

SLR mirrors are silvered on the front, unlike a typical mirror, which has the silver on the back with a coat of paint behind it and the glass in front to protect it. Front silvering avoids a ghost image from light reflecting off the front of the glass, such as you’ll see if you look into your bathroom mirror at 45 degrees from the perpendicular.

SLR mirrors come in all sorts of sizes, so you can’t easily buy a matching replacement (this one is 34x25mm, with 3mm or so snipped off the front corners; newer cameras have larger mirrors). They’re also thin (this one is 1.37mm) and the thickness matters when focusing, although this camera’s adjustable focusing screen means we only need it to be “almost” right.

I found a supplier of individual small front-silvered optical mirrors (Knight Optical), though I would have to cut one down to size. But I also read in a forum somewhere that you can make a front-silvered mirror from the mirror in a cheap make-up compact, by flipping it around and using solvent to remove the paint from the back and reveal the silvered surface. That sounded intriguing.

I bought a glass-cutting tool and a couple of double-sided make-up mirrors from Tiger for £1 each to experiment with. These are made of two thin (1.2mm) round mirrors back-to-back, with a cardboard spacer in between, in a metal frame. One of the mirrors is magnifying, so no use to us, but the other is flat.

The mirrors are backed by white paint, which doesn’t dissolve in paint thinner but does in acetone. Soaking and gentle rubbing with cotton wool took a while, but worked, and left a pleasingly shiny silvered (well, aluminised) surface. The picture above shows one of the magnifying mirrors, which I used to test the solvent, along with two of my attempts at cutting out the right shape from the non-magnifying mirror. I measured, marked, cut, and sanded these mirrors (use protective eyewear and a dust mask! … if you can find one) before removing the paint.

The old mirror in the camera is stuck down onto its flap with three points of glue, whose positions are helpfully marked by raised spots on the back of the flap. Prising the mirror gently away with a small screwdriver was enough to separate it from the flap.

Below is the old mirror, on the left, next to the new, on the right, reflecting a lamp. This time I’ve focused on the lamp rather than the mirror surface. You can see that the old one, though cloudy, works a lot better than you might expect, but the new one is still much clearer.

You can take a perfectly good picture with a cloudy viewfinder, and a scratch or mark on your SLR mirror certainly isn’t the end of the world. It mostly just looks bad on the camera when you look at it with the lens off.

I attached the new mirror at the same gluing points as the old, re-fitted it, then adjusted the viewfinder focus, and the result is really very nice. I’ll be interested to see how, if at all, it weathers the years.

Replacing the leather cover

Replacing the mirror wasn’t a complete success. I seriously messed up part of this adventure: I ripped the leather cover beyond repair when opening the front to get to the mirror box. The leather on this camera is the same as that on the model A, that is, thin and easily torn. In my post about the model A I said that the texture on the leather was good at hiding small tears: that’s true, but there are limits.

The leather on this camera was particularly well stuck down, and I soon discovered that, although you can loosen the glue with a squirt of isopropyl alcohol, that also softens the leather and makes it much more liable to tear.

So as well as replacing the mirror, I set out to replace the leather cover. I already had a sheet of pre-glued “lizard ocher” leather from Aki-Asahi, which I had ordered, just in case, at the same time as the fabric I used to replace the model A shutter curtain. Aki-Asahi sell a lot of pre-cut leathers for particular cameras, but they don’t have one for the SR-1.

I measured up and made a template for the SR-1 covers, both front and back, then cut them out with a Stanley knife. An SVG file of the template can be found here. Loaded into Inkscape and printed with a properly configured printer, it should come out with the correct dimensions. The hardest part by far is cutting the circular hole on the back for the film speed reminder dial.

I don’t entirely approve of putting an inauthentic new cover on a fine old camera like this, and it’s a bit on the cheesy side as well, but I have to confess I quite like the result anyway. Since I had already replaced the mirror in this one with a home-made version, I probably have to think of it as a somewhat personalised object already.

This camera also had a non-working slow-speed gear, which just needed cleaning, and a loose mirror box and viewfinder, due to having somehow lost one of the screws attaching the mirror box to the bottom plate. With these fixed, it’s working again, as is the other camera which came to me with a stuck shutter. In both cases the faster shutter speeds still need a bit of adjustment, and I haven’t yet run any film through them.
